[시스템 프로그래밍] Standard I/O Library

stdio: Standard I/O Library



• Perfomance issues
  • Alignment
    • I/O performance is optimal when requests are issued on block-aligned boundaries in integer multiples of the block size
    • I/O의 성능은 OS가 관리하는 block사이즈의 배수로 관리되는 buffer의 유무에 달려있습니다. 즉 buffer의 시작주소나 길이가 block size의 양수배여야 성능이 좋아집니다.
  • Number of system calls
    • Performance degradation is exacerbated by the increased number of system calls required to read
      • A single byte 1,024 times rather than 1,024 bytes all at once
      • system call의 횟수가 매우 중요합니다.

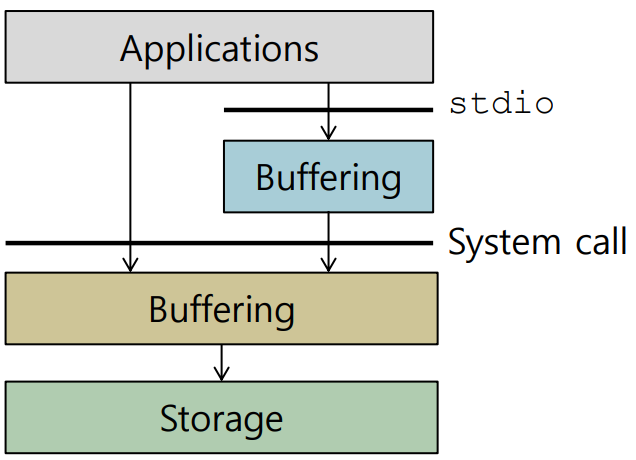

• User-buffered I/O
  • Buffering done in user space, either manually by the application, or transparently in a library
• stdio
  • Provides a platform-independent, user-buffering solution

stdio



File Pointer (similar with file descriptor)



• Inside the C library, the file pointer maps to a file descriptor
  • File pointer is represented by a pointer to the FILE typedef, which is defined in <stdio.h>



Opening Files



• FILE *fopen(const char *path, const char *mode)
• Opens the file path according to the given mod
• mode
  • r: open the file for reading
  • r+: open the file for both reading and writing
  • w: open the file for writing
    • If the file exists, it is truncated to zero length; If the file does not exist, it is created
  • w+: open the file for both reading and writing
  • a: open the file for writing in append mode
    • The file is created if if does not exist
    • The stream is positioned at the EOF
  • a+: open the file both reading and writing in append mode
  • WHAT IS THE Difference between r+ and w+ in fopen()?
  • Return value
    • Upon success, a valid FILE pointer; in failure, NULL

https://stackoverflow.com/questions/21113919/difference-between-r-and-w-in-fopen

Difference between r+ and w+ in fopen()



w+에서의 write()은 truncated이고, r+에서의 write()은 append이다





Opening Streams via File Descriptor



• FILE *fdopen(int fd, const char *mode)
• Converts an already open file decriptor (fd) to a stream
• mode
  • Must be compatible with the modes originally used to open the file descriptor
  • fd의 접근 mode와 fdopen에서의 mode가 반드시 같아야합니다.
• Return value
  • Upon success, a valid FILE pointer; on failure, NULL



Reading from a Stream



• int fgetc(FILE *stream)
  • Reads a single character from a stream
  • Returns a character as an unsigned char cast to an int
    • the return value must be stored in an int
      • Storing it in a char is a common but dangerous mistake
    • the casting is done to have a sufficient range for notification of EOF or error
    • int로 return을 받는 이유는 EOF나 error에 대한 처리를 위해서입니다. 진짜 입력을 받을때는 unsigned char타입으로 타입캐스팅을 해줘야합니다.
• char *fgets(char *str, int size, FILE *stream)
  • Reads up to one less than size bytes from stream, and stores the results in str
  • size byte보다 1byte적게 읽어들입니다. 그 1byte는 \0을 위한 자리입니다
    • A null character (\0) is stored in the buffer after the bytes read in
    • string을 buffer로부터 읽어들인 후에는 \0을 뒤에 붙여줘야합니다
    • Reading stops after an EOF of a newline character is reached
      • If a newline is read, the \n is stored in str
      • \n을 읽으면 읽어들이는 문자열에는 \n까지 들어가고 끝나기 때문에 또 마지막엔 \0을 붙여줘야합니다.
  • Return value
    • On success, str; on failure, NULL
• size_t fread(void *buf, size_t size, size_t nr, FILE *stream)
  • Reads up to nr elements of data, each of size bytes, from stream into buffer pointed ay by buf
  • size크기의 data를 nr개 읽겠다는 의미로, 총 읽어들이는 길이는 size * nr입니다
  • Return value
    • The number of elements read (not the number of bytes read!) is returned
    • 읽어들인 byte수가 아닌 읽어들인 element의 수가 return됩니다.



Writing to a Stream



• int fputc(int c, FILE *stream)
  • Writes the byte specified by c (cast to an unsigned char) to the stream pointed at by stream
  • fgetc와 마찬가지로 쓰려는 값은 integer type이어야합니다.
  • Return value
    • Upon successful, c; otherwise EOF
• int fputs(const char *str, FILE *stream)
  • Writes a null-delimited string to a given stream
  • \0이 나올때까지 write하기 때문에 str에는 반드시 \0이 존재해야합니다.
  • Return value
    • On success, a nonnegative number; on failure, EOF
• size_t fwrite(void *buf, size_t size, size_t nr, FILE *stream)
  • Writes to stream up to nr elements, each size bytes in length, from the data pointed at by buf
  • fread()와 마찬가지로 데이터의 크기가 size인 element를 nr개 작성하는 함수입니다.
  • Return value
    • On success, the number of elements (not the number of bytes!) successfully written will be returned
    • Return value less than nr denotes error
    • fread()같은 경우는 중간에 EOF같은 것을 만나면 중간에 read가 끊기니까 return value가 nr보다 작아도 정상적으로 수행이 된 것이지만, fwrite는 nr보다 작은 값이 return되었다면 error가 발생한 것으로 해석할 수 있습니다.



Flushing a Stream



• int fflush(FILE *stream)
  • Writes the user buffer to the kernel, ensuring that all data written to a stream is flushed via write()
  • 사용자 수준의 buffer를 I/O에 write, read하라고 ensure하는 것입니다. 따라서 write의 경우는 OS에 write()을 호출하는 것이라서 OS 수준에서의 buffer에는 남아있을 수 있습니다. 즉 fsync()와 같은 함수까지 호출해야 OS 수준의 buffer에서도 flush가 됨을 보장합니다.
  • Return value
    • On success, 0; on failure, EOF



Seeking a Stream



• int fseek(FILE *stream, long offset, int whence)
  • Manipulates the file position of stream in accordance with offset and whence
  • whence
    • SEEK_SET: the file position is set to offset
    • SEEK_CUR: the file position is set to the current position plus offset
    • SEEK_END: the file position is set to the end of the file plus offset
  • Return value
    • On success 0; on error -1
    • lseek과 달리 offset을 return하지 않습니다.
• long ftell(FILE *stream)
  • Returns the current stream position of stream
  • On error, it return -1



Closing Streams



• int fclose(FILE *stream)
  • On success, 0; on failure, EOF
• int fcloseall(void)
  • Closes all streams associated with the current process, including stdin, stdout, and stderr
  • std fd를 포함하는 해당 프로세스가 사용하고 있는 모든 file들을 close합니다.



Example

int main()
{
    FILE *in, *out;
    struct univ {
        char name[100];
        unsigned int year;
    } u, my_univ = {"konkuk Univ.", 1931);

    out = fopen("data", "w");
    if(!out){
        perror("fopen");
        return 1;
    }

    if(!fwrite(&my_univ, sizeof(struct univ), 1, out)){
        perror("fwrite");
        return 1;
    }

    if(fclose(out)){
        perror("fclose");
        return 1;
    }

    in = fopen("data", "r");
    if(!in){
        perror("fopen");
        return 1;
    }

    if(!fread(&u, sizeof(struct univ), 1, in)){
        perror("fread");
        return 1;
    }

    if(fclose(out)){
        perror("fclose");
        return 1;
    }

    printf("name=\"%s\" year=%u\n", u.name, u.year);
    return 0;
}
